Cache System

A stripe is a contiguous series of bytes of size n_lanes * word_width (VLEN). How those bytes are distributed across the jamlets will depend on the lane order and the element width of the stripe. It will always be distributed across all the kamlets, and each of those kamlets has a separate memory and a separate cache system.

The lane order and the element width of a stripe explicitly specifies which jamlet is responsible for caching each of the bytes of the stripe. It is not possible for another jamlet to cache that byte locally. This means that when a jamlet accesses a non-local byte, it will never be cached locally, however often the jamlet accesses it.

The system is designed to perform well when data accesses are aligned to the stripe, and when the element-width matches. It is not designed to perform well when there are many non-local data accesses.

In the diagram we see that the stripe (located at 0x10 in the memory) is cached in three of the four kamlets. In two of the kamlets the state is 'Modified', while in the other the state is 'Exclusive'. Because each byte can only be cached in one place the possible states are only 'Invalid', 'Modified' and 'Exclusive'. Each kamlet independently manages its cache and has no knowledge of the state of the other kamlet's caches.

Control

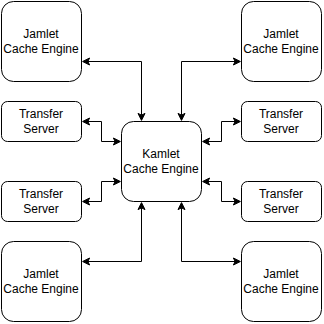

The cache of each kamlet is controlled independently. The Kamlet Cache Engine stores the cache meta data. All kinstructions that access local memory query the cache engine to determine whether the cache line is present.

When a cache miss occurs the Cache Engine will allocate a cache slot to the request. It will send a message to the Memlet over the kamlet network, as well as instructing the Jamlet Cache Engines to send the data for the evicted cache line to the Memlet. The Jamlet Cache Engines will send the evicted data, and then receive responses from the Memlet with the data for the new cache line. Once this is received they signal to the Kamlet Cache Engine.

Once the Kamlet Cache Engine sees that all jamlets have retrieved their share of the cache line it will signal the Kamlet Transfer Engine so that any kinstructions that were waiting on this cache line can proceed.

Memory access requests can also be a result of request messages sent from non-local jamlets. The jamlet's Transfer Server will send these access requests to the Kamlet Cache Engine to determine if it is a cache hit or miss. For a cache miss the cache engine will retrieve the cache line in the manner discussed previously, however it will store the request message in a table inside the Kamlet Cache Engine. Once the cache line is retrieved the engine will send the message back to the Transfer Server so that it can generate the response.
